actioncable-presence

Who is here, for Action Cable, with a hard bound on how wrong it can be.

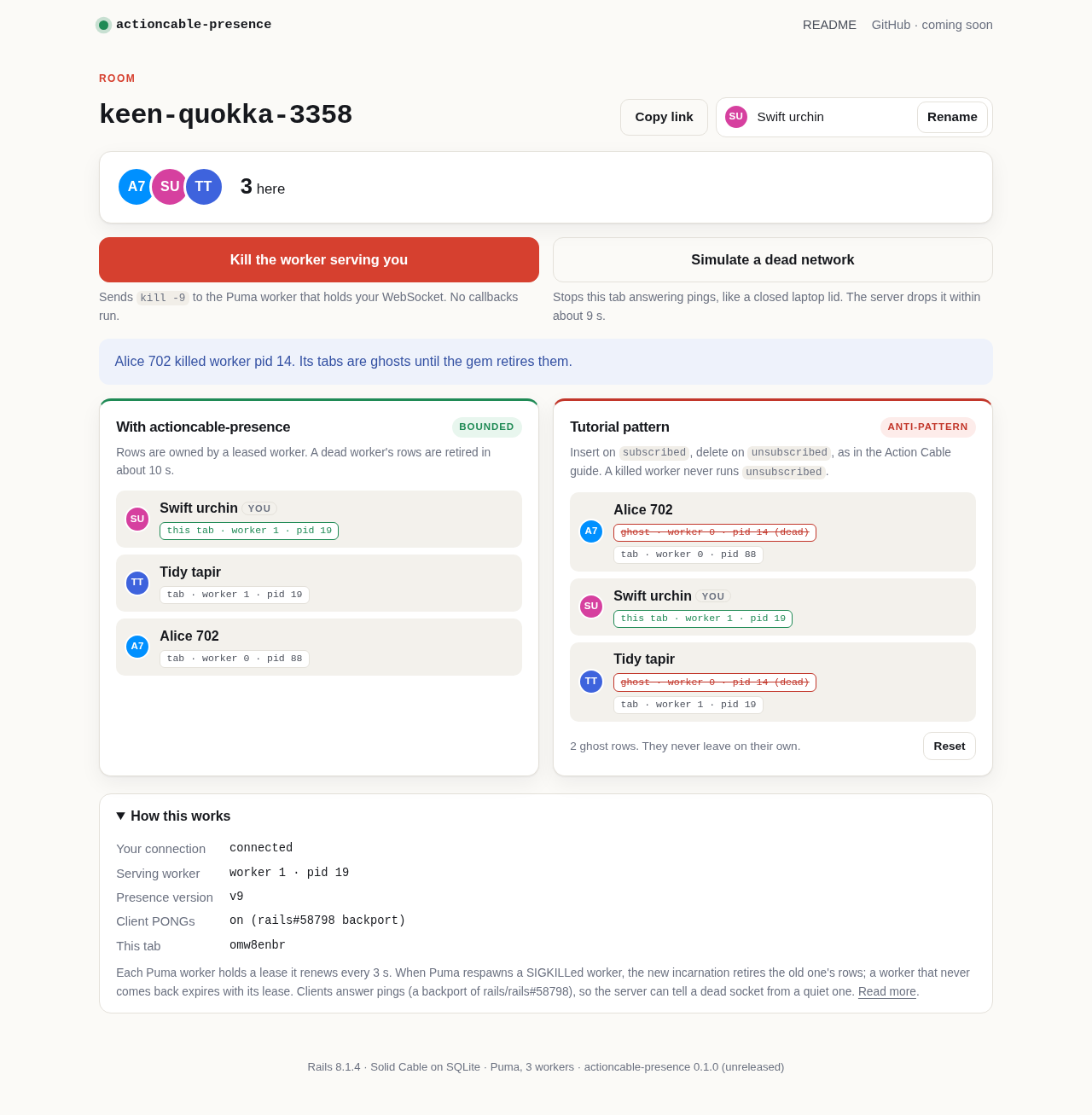

Live demo: presence.latebuild.com. Open a room, invite someone, then press “Kill the worker serving you”: the Puma worker holding your WebSocket gets kill -9, and your ghost clears in about 10 s. Next to it, the Action Cable guide’s pattern keeps the ghost forever.

class RoomChannel < ApplicationCable::Channel
  include ActionCable::Presence::Channel

  def subscribed
    stream_from "room:#{params[:id]}"
    join_presence(id: current_user.id, info: { name: current_user.name })
  end
end

const { count, list } = usePresence(consumer, { channel: "RoomChannel", id: room.id })

Presence is the classic “looks easy” feature. The Action Cable guide’s pattern adds a user on subscribed and removes them on unsubscribed. That pattern leaves permanent ghosts whenever a process is killed, because no callbacks run. It also leaves them when a laptop lid closes, because the socket stays half-open for many minutes, and when a restart discards queued callbacks. It hides a user who still has another tab open. This gem is built around those failures:

• One row per subscription, owned by a leased process incarnation. A killed Puma worker’s users disappear within about 10 s when Puma respawns it, and within about 19 s at worst. A process that cannot prove its lease closes its own connections first, so a live user is never hidden.
• Half-open detection. The gem ships a backport of rails/rails#58798 (client PONGs), server side and JS side. A silent client is dropped after about 9 s.
• A remove beats a stale add. Action Cable runs a connection’s messages concurrently on a thread pool, so an unsubscribe can execute before its own subscribe. The gem handles that ordering.
• Clients reconcile. Diffs are versioned. Clients buffer out-of-order diffs, resync on a gap, and keep showing members across a reconnect until the fresh snapshot arrives.
• Phoenix’s shape. A key maps to per-connection metas, so two tabs of one user are one member with two metas.
• AnyCable’s API and wire format. @anycable/web’s channel.presence works unchanged, and a channel can move to AnyCable later.

It runs on Rails’ default stack: Solid Cable on SQLite, one box. It also runs on PostgreSQL with several servers.

Quick start (Rails 8, Solid Cable on SQLite)

bundle add actioncable-presence
bin/rails generate action_cable:presence Room   # migration in db/cable_migrate, initializer, channel
bin/rails db:migrate
npm install @action-cable-presence/client       # or copy js/src (plain TS, no dependencies)

The generator adds include ActionCable::Presence::Connection to ApplicationCable::Connection, which hooks connection close. Then, where you create your consumer:

import { createConsumer } from "@rails/actioncable"
import { installPongs } from "@action-cable-presence/client"

export const consumer = createConsumer()
installPongs(consumer) // the server can now tell a dead socket from a quiet one

React (Inertia or not):

import { usePresence } from "@action-cable-presence/client/react"

function Here({ roomId }: { roomId: number }) {
  const { count, list } = usePresence(consumer, { channel: "RoomChannel", id: roomId })
  return <p>{count} here: {list((key, metas) => metas[0].name).join(", ")}</p>
}

Without React, PresenceState is the same reconciler. The demo (demo/app/javascript/room.js) uses it with an import map and no bundler. examples/inertia/ has an Inertia page with shadcn/ui avatars.

Channel API

Our clients receive {presence: {type: "state" \| "diff" \| "digest", v, ...}} on the channel and perform presence_state to resync. PresenceState / usePresence handle this for you. AnyCable clients (subprotocol actioncable-v1-ext-json) get AnyCable 1.6 presence / join / leave semantics instead.

Configuration

# config/initializers/action_cable_presence.rb
Rails.application.config.action_cable_presence.database = :cable # Solid Cable's database
Rails.application.config.action_cable_presence.pong = true       # rails#58798 backport
Rails.application.config.action_cable_presence.anycable = true   # accept actioncable-v1-ext-json
ActionCable::Presence.config = ActionCable::Presence::Config.default(lease: 15.0, renew_every: 3.0)

Staleness bounds with the defaults:

Postgres

Works the same way. apply takes FOR SHARE on its process row, so a sweep cannot delete an incarnation while one of its joins commits. Solid Cable on PostgreSQL can skip a message whose id commits out of order, which load/pg_check.rb reproduces. Presence does not depend on every diff arriving: once a second, each process compares database versions with what pubsub delivered and sends a digest, and clients resync from a snapshot. MySQL is not supported yet.

How it is tested

• test/: example tests for each rule against real SQLite. They also run on PostgreSQL with PRESENCE_TEST_DB=postgresql. There are generator tests, and a guard that every simulator mutant still applies.
• sim/: a deterministic simulator that drives the real gem code (Tracker, SqlStore on a real SQLite database, the client reconciler) through three simulated Puma workers for one virtual hour per seed. It injects seven fault types: SIGKILL, freezes, graceful and in-process restarts that discard callbacks, database and pubsub partitions, fsync stalls, late or lost commit replies, pubsub drop/duplicate/reorder, clock skew, 1,000-client reconnect storms, and subscribe/unsubscribe races. Invariants: no permanent ghosts, bounded ghosts, zero false-absent seconds, rows of closed connections removed, client views converge, and no spurious fences. See sim/README.md.
• sim/mutants.rb: 32 plausible bugs. The mutation score is how the oracle proves it can catch them.
• load/: real-process checks against demo/ (Puma, 2 workers, Solid Cable):
  • kill_test.rb runs kill -9 50 times with 500 clients, on SQLite or PostgreSQL.
  • pong_check.rb tests the #58798 backport.
  • anycable_check.rb runs the real @anycable/web client in Node.
  • storm.rb measures a 1,000-client reconnect storm.
  • pg_check.rb runs concurrent transactions on PostgreSQL.
  • demo_page_check.mjs drives three headless Chromium visitors through the live demo: rename, kill the serving worker, the tutorial-pattern ghost, and a simulated dead network.
  • hammer.mjs fires bursts of kill clicks at the demo and checks the rate limits and /up.

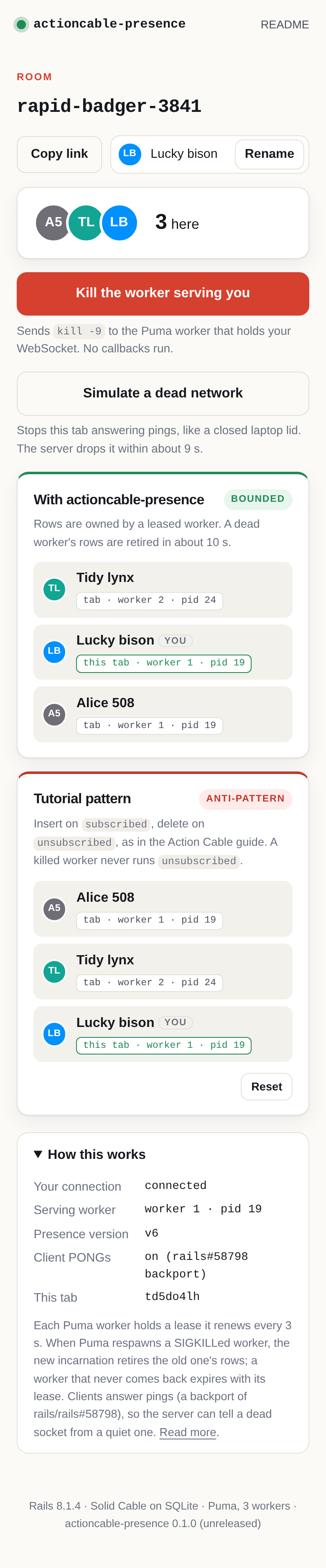

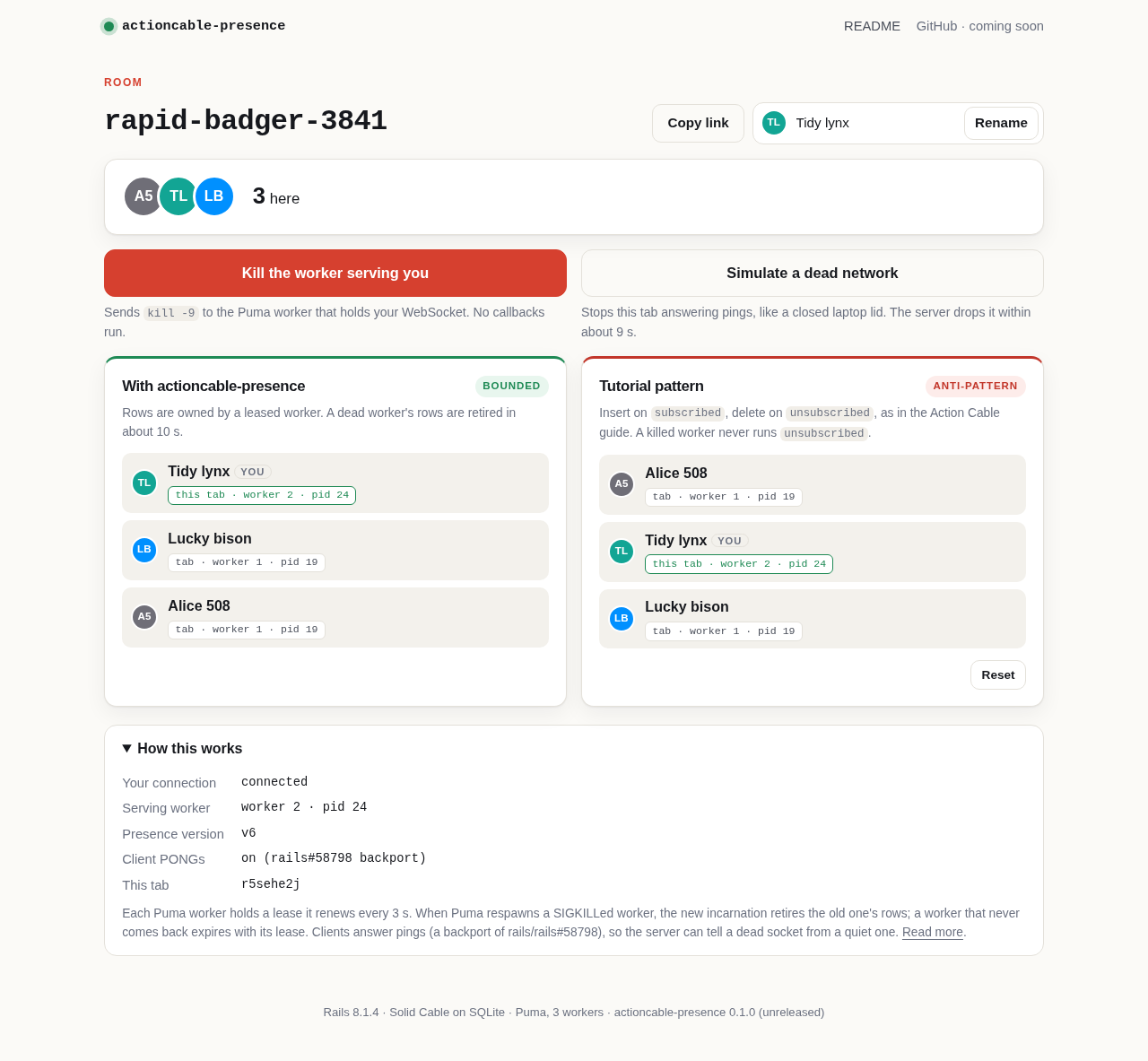

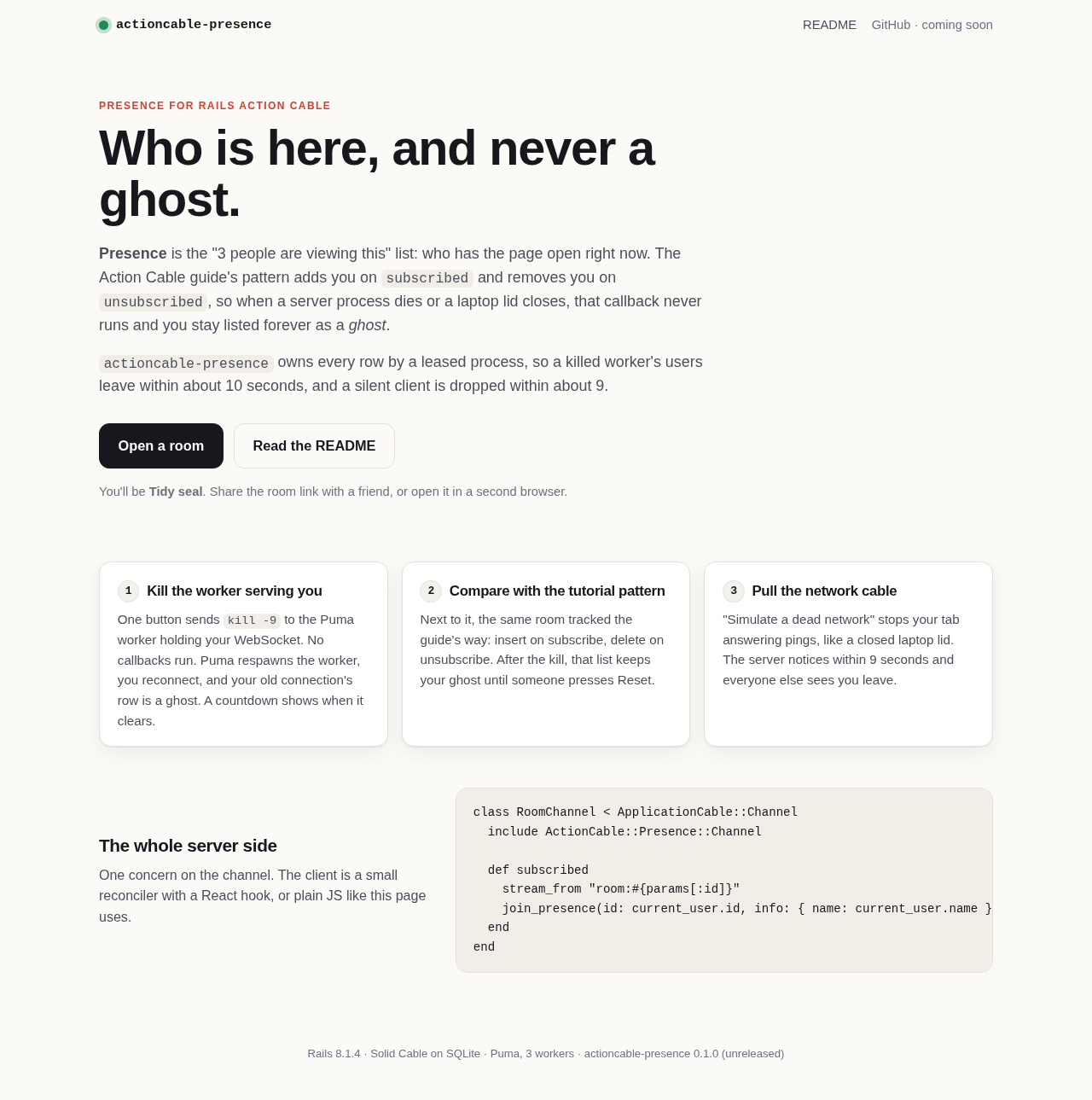

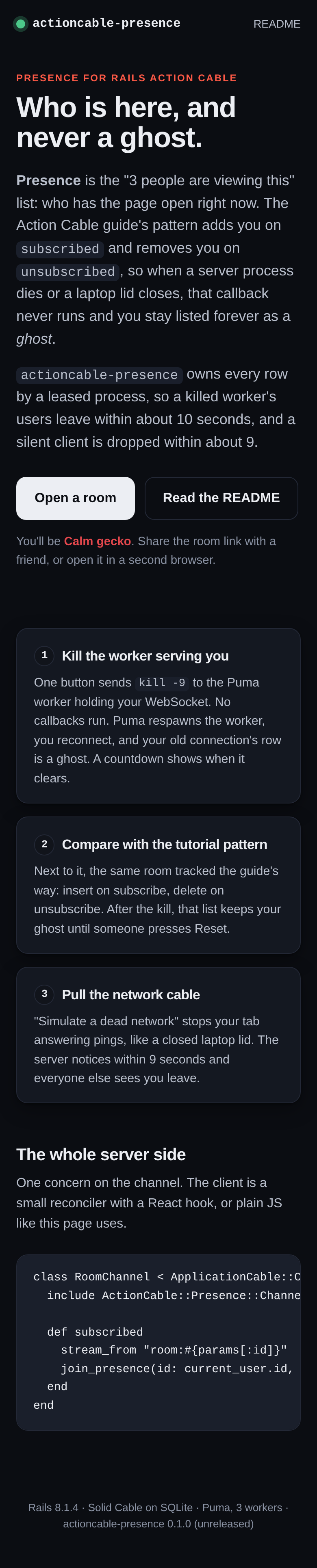

The demo

demo/ is the app behind presence.latebuild.com: Rails 8.1, Solid Cable and Solid Cache on SQLite, Puma with 3 workers, import maps, no Node. Kamal deploys it (cd demo && kamal deploy; see demo/config/deploy.yml).

• Kill requests are rate limited: one per room every 30 s, 10 per IP per hour, 6 per minute for the whole site. The HTTP request only issues a signed, single-use ticket. The visitor’s own WebSocket redeems it, so the worker that holds the socket is the one that kills itself. The client never names a pid.
• Visitors get a random name and colour in a signed cookie. ?user= works only in development, in test and under PRESENCE_LOAD_TEST=1; the app refuses to boot with that flag set on the public host.
• Rooms are capped at 500. Idle rooms nobody is in are pruned after an hour, and so are the tutorial pattern’s ghost rows.

Desktop	Mobile

Measured on 0.1.0 (2026-09-29, a shared 16-core machine under load):

Status: version 0.1.0, not released.

License

MIT
